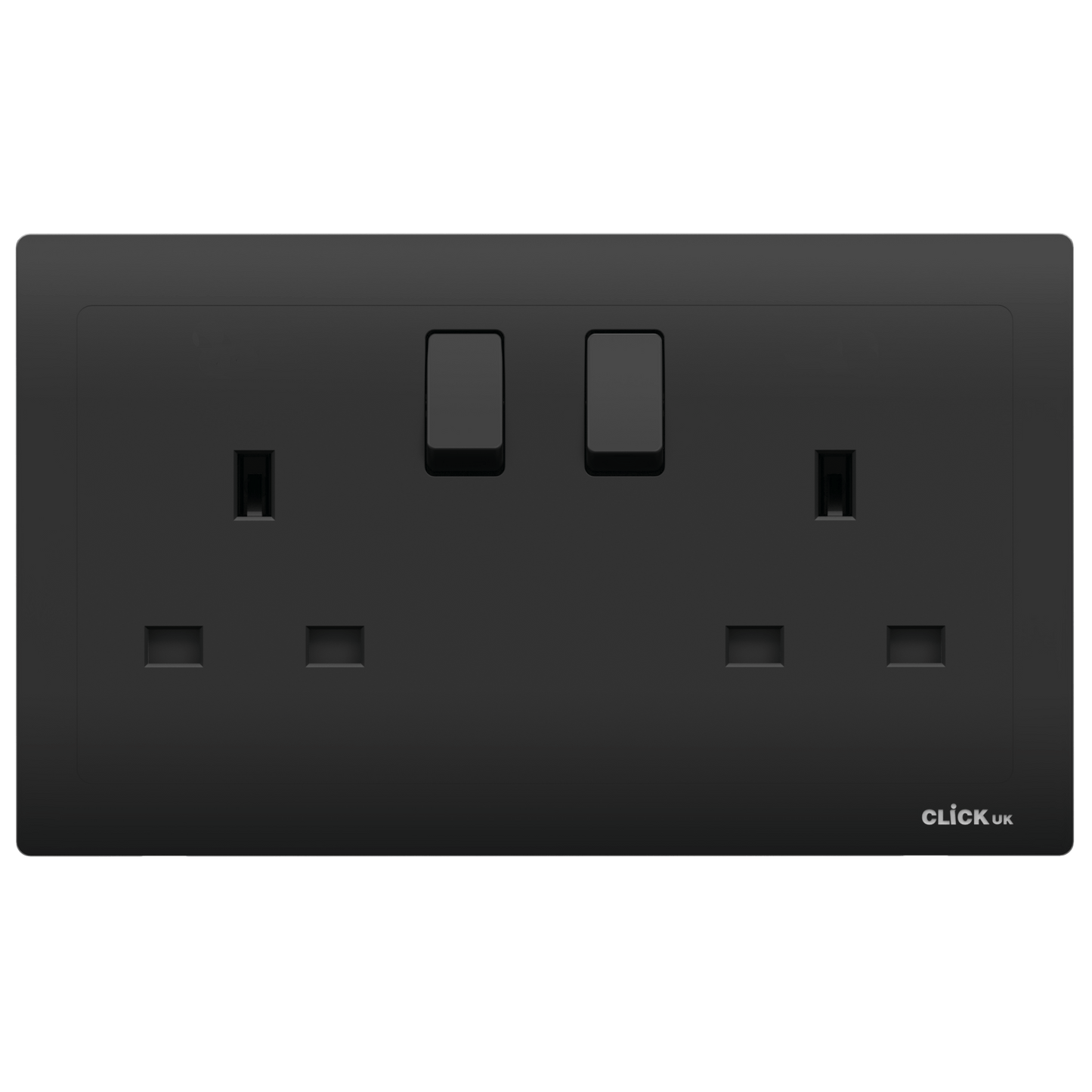

CPC036BK 13A SWITCHED 2 GANG SOCKET "

General Information Product Dimensions 146mm (W) x 86mm (H) x 27.5mm (D) Plate Dimensions 146mm (W) x 86mm (H) x 6.5mm (D) Insert Black Plate Finish Black Materials Cover Plate: PolycarbonateMaximum Voltage 250V~ 50Hz Load Rating 13A Plate Fixing Centres 120.6mm Terminal Size 4mmø Terminal Torque 1.2Nm Terminal Capacity 3 x 2.5mm2 or 2 x 4mm2 Double Pole Yes Ingress Protection IP20 Back Box Depth 35mm Minimum Termination Type Screw Operational Temperature -5°C to +40°C Warranty 10 Years
