ELECTRO-MAN

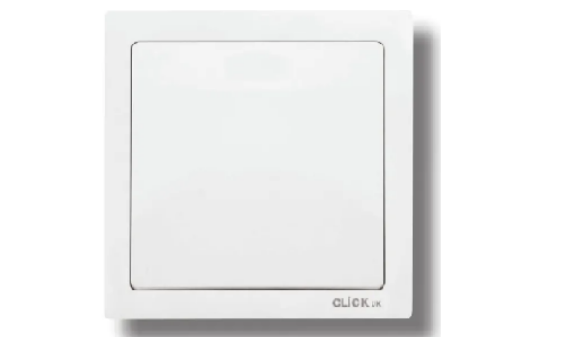

10AX 1 GANG INTERMEDIATE SWITCH WHITE

10AX 1 GANG INTERMEDIATE SWITCH WHITE

Regular price €5,60 EUR
Regular price Sale price €5,60 EUR
Sale Sold out
Tax included.
  1. General Information Dimensions 86mm x 86mm x 31.5mm Finishes Available CPC825: White, CPC825SV: Silver (RAL 9006 (White Aluminium)) Material Composition Front Plate: Polycarbonate Insert, Switch & Base: Polycarbonate Terminals: Brass Plated Steel Terminal Screws: Steel and Yellow Passivated Internal Busbars: Formed Pressed Brass Silver “On-lay” Copper/Brass Contacts Maximum Voltage 250V~ 50Hz Current Rating 10AX (Suitable For Inductive Loads) Fixing Centres 60.3mm Terminal Screw Size 3mmø Terminal Torque 0.8Nm Terminal Capacity 2 x 4mm2 Max. Switched Yes Intermediate Yes Back Box Depth 35mm Minimum Temperature Rating -5° to +40°C Warranty 10 Years (Domestic) Standards Standards BS EN 60669– 1: 1999 + A1: 2002 + A2: 2008
